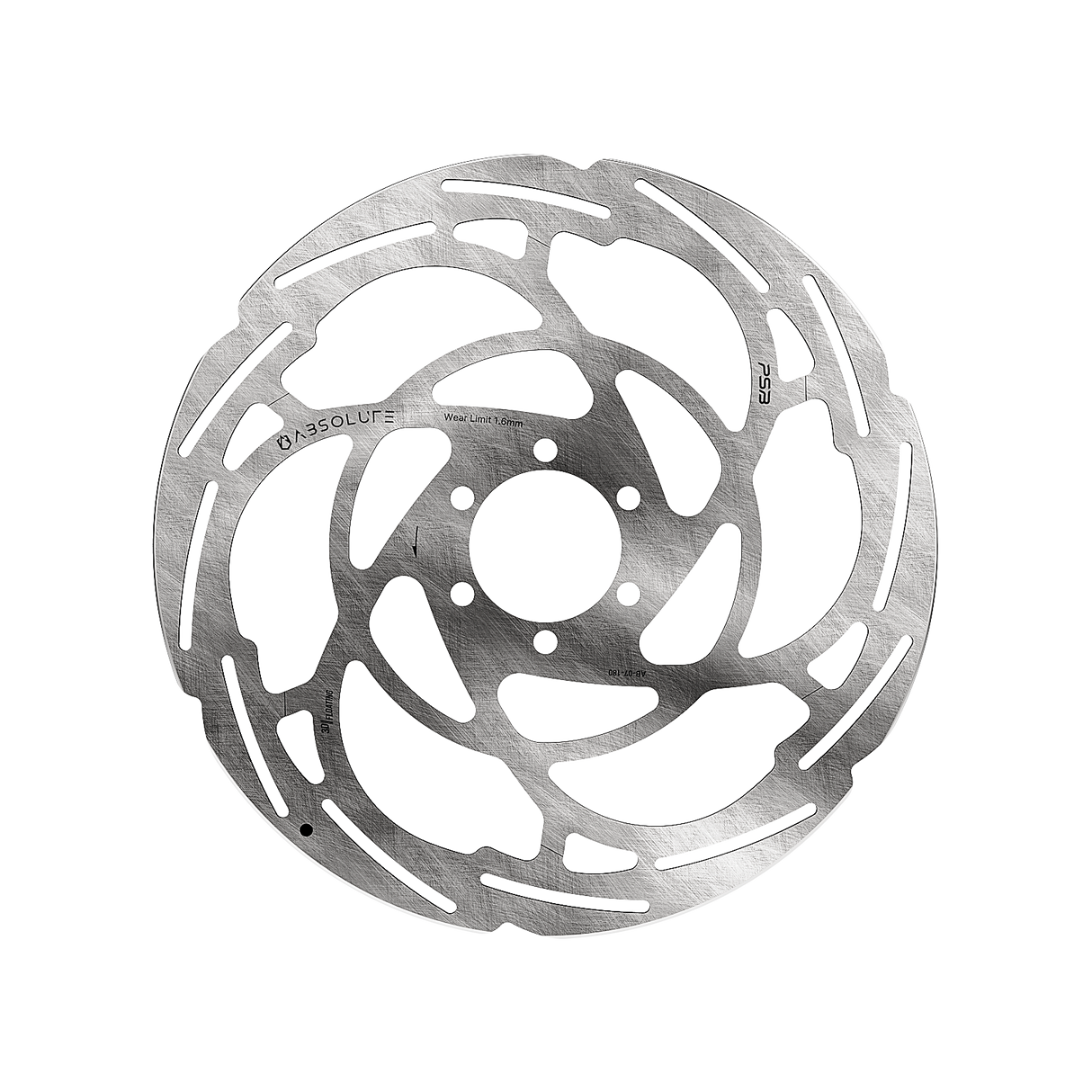

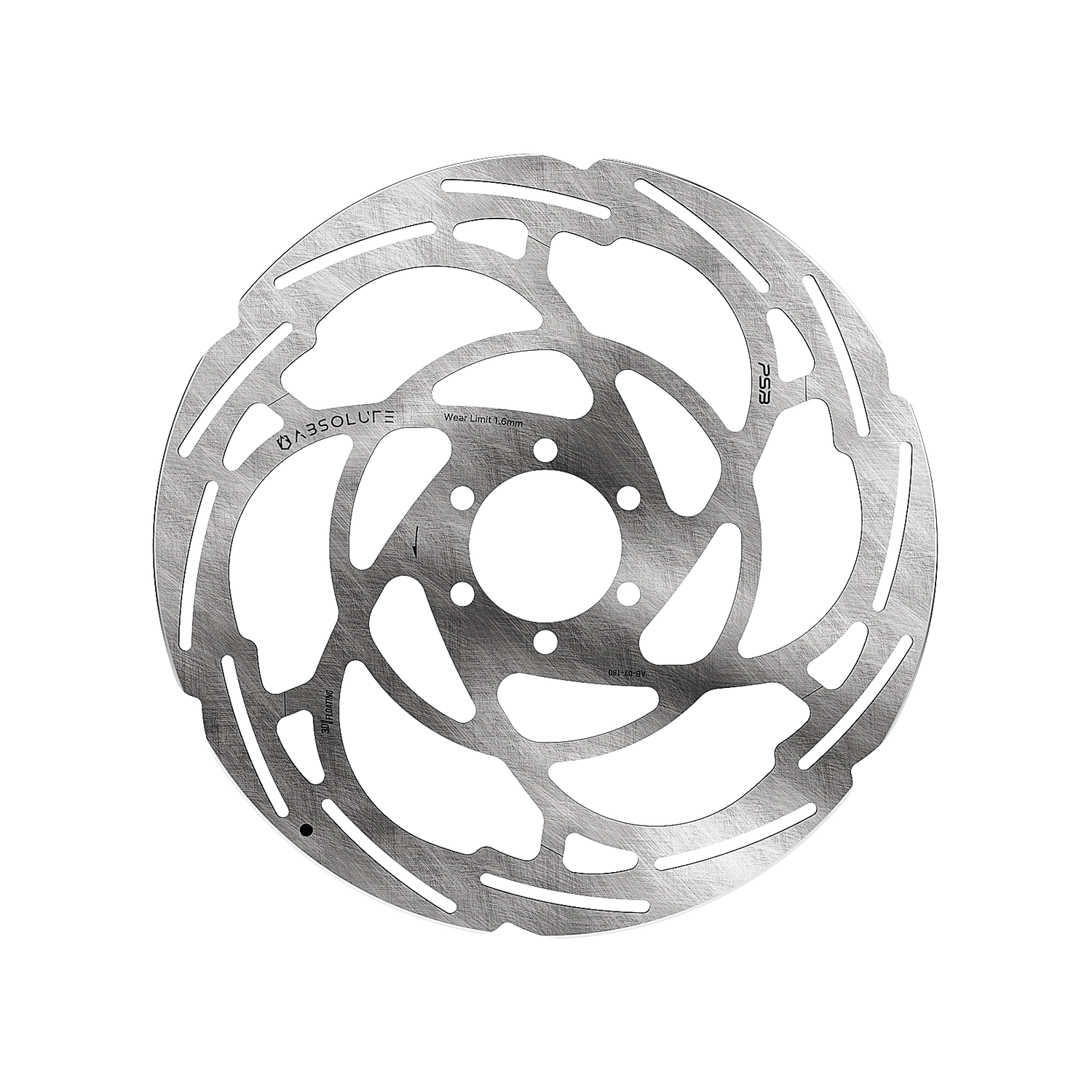

DISC ROTORS - AB-07 | ONE-PIECE | 6-BOLT | 3D FLOATING

3D FLOATING TECHNOLOGY

3D floating technology improves the rotor performance to a whole new level. As strength, durability, and safety have been improved, the rotor can withstand the braking force requirements of all bicycles, including electric bicycles.

FLEXIBLITY & RIGIDITY

The special angle of the cut can provide support when the margin space reaches the set value along the force direction when braking. So the product strength is ensured while the floating structure restrains the high temperature deformation during braking.

FLOATING OUTER DISC

The patented floating rivet structure provides a large one-way movement space when it confronts asymmetric clamping of the brake pads during braking. The two main features formed the 3D floating function which can reduce operation abnormalities, suppress high temperature deformation, and increase product durability.

PATENTED ELASTIC DISC RIBS

PSB’s innovative PR-06 differs from conventional two-piece rotors in two major features, the partially elastic outer disc and the floating rivet structure. The patented open cuts are located on 6 of the 12 outer disc ribs, giving the disc flexibility. 6 other ribs are solid, which maintain the original rigidity of the disc.

UCI REGULATIONS

Referring to the UCI regulations, the outermost periphery of the disc is designed to be full round edges.

PRODUCT ADVANTAGES

Not only the abnormal noise of the frame resonance are effectively reduced, the heat deformation caused by thermal accumulation is also prevented. Which increases the rotor’s strength, durability, and makes it sufficient for all kind of bicycles.

SPEC

・Weight: AB-07-180 / 181g

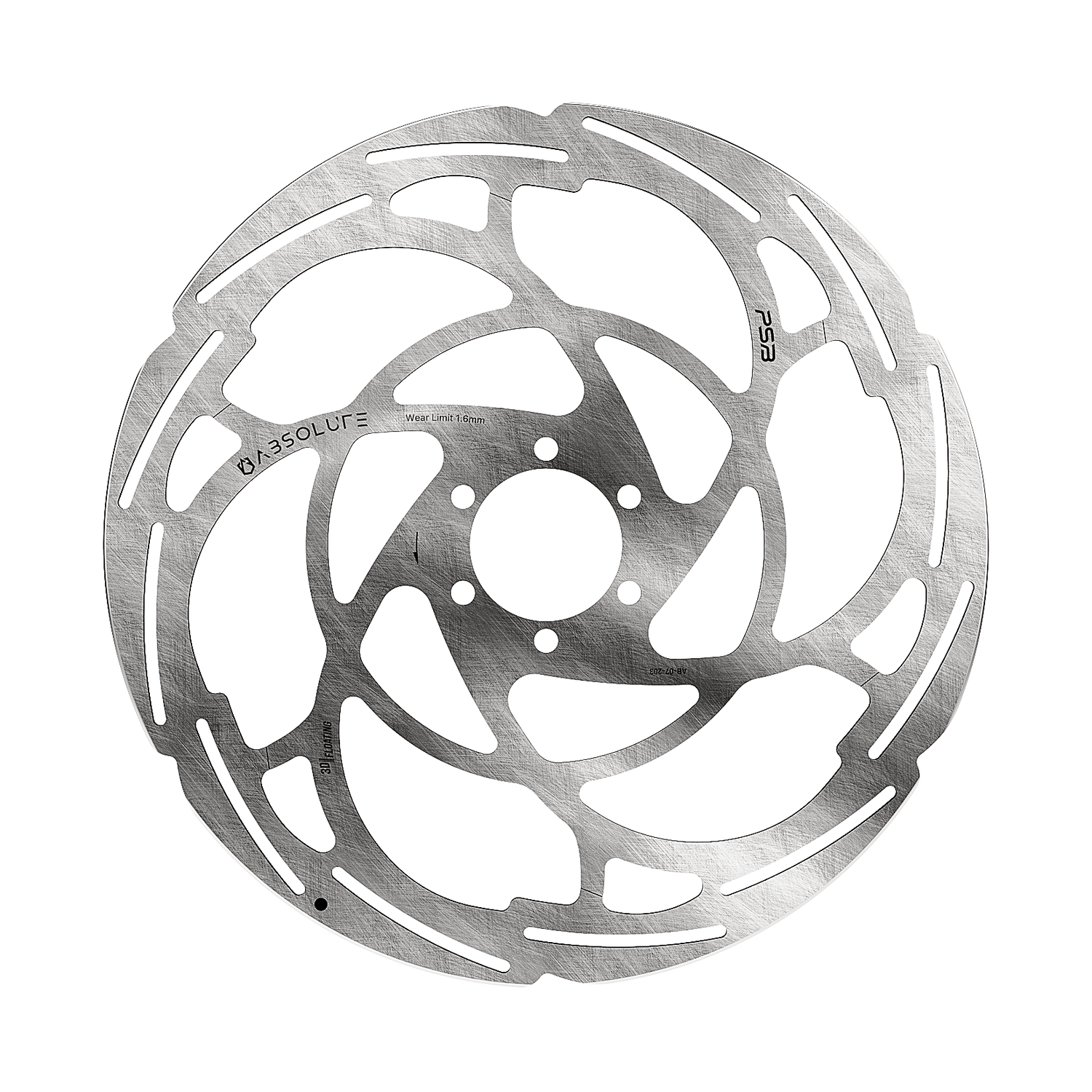

                   AB-07-203 / 216g
・Material: Rotor / Stainless Steel (SUS 410)
・Compatibility: International 6-Bolt Hubs

FEATURES

・EU invention patent
・Spider material: forged aluminum wheels increase rigidity and reduce weight
・Rotor Rounder in line with UCI specifications
・3D floating disc rotor
・W / Steel Bolt
